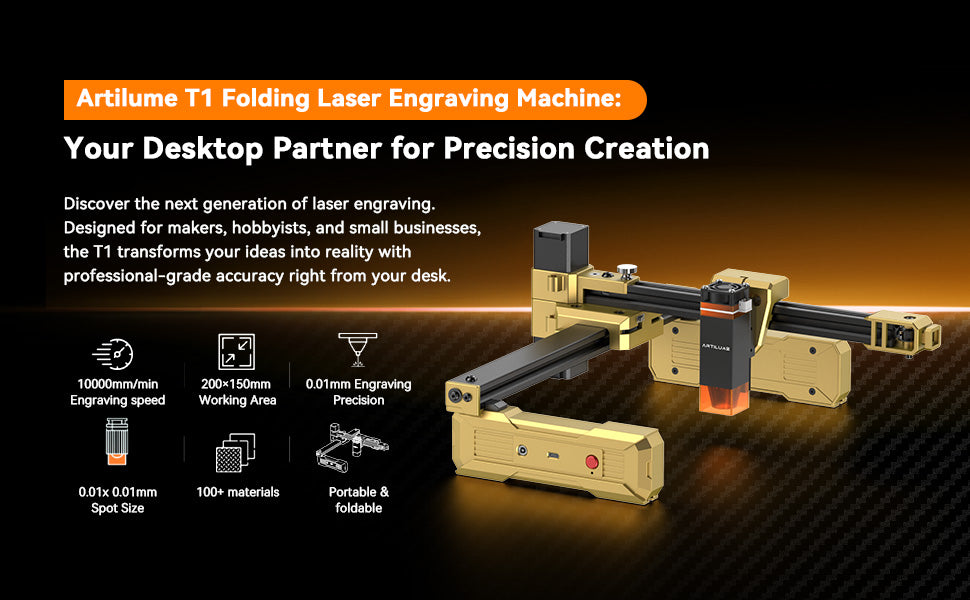

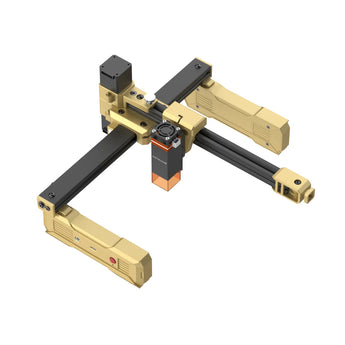

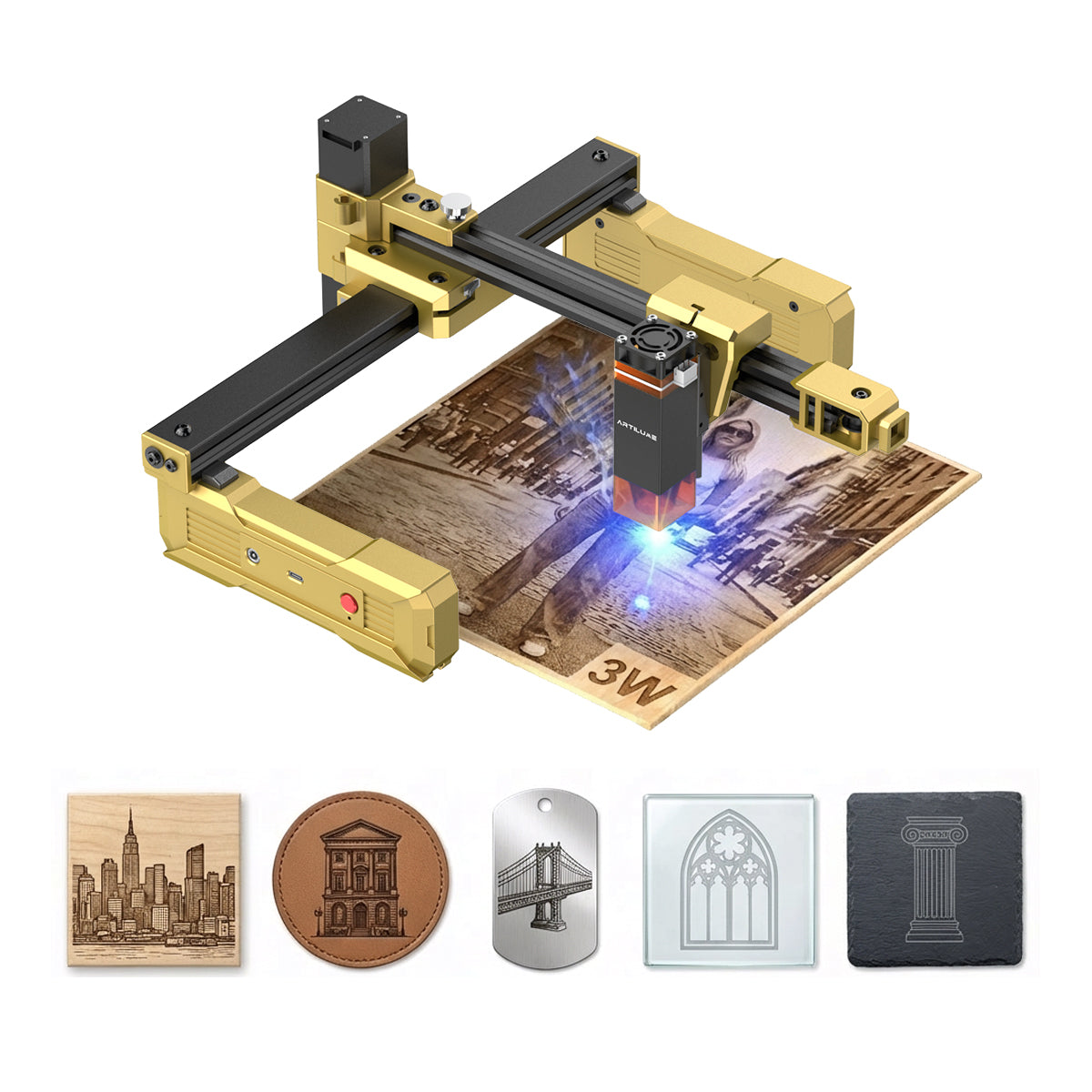

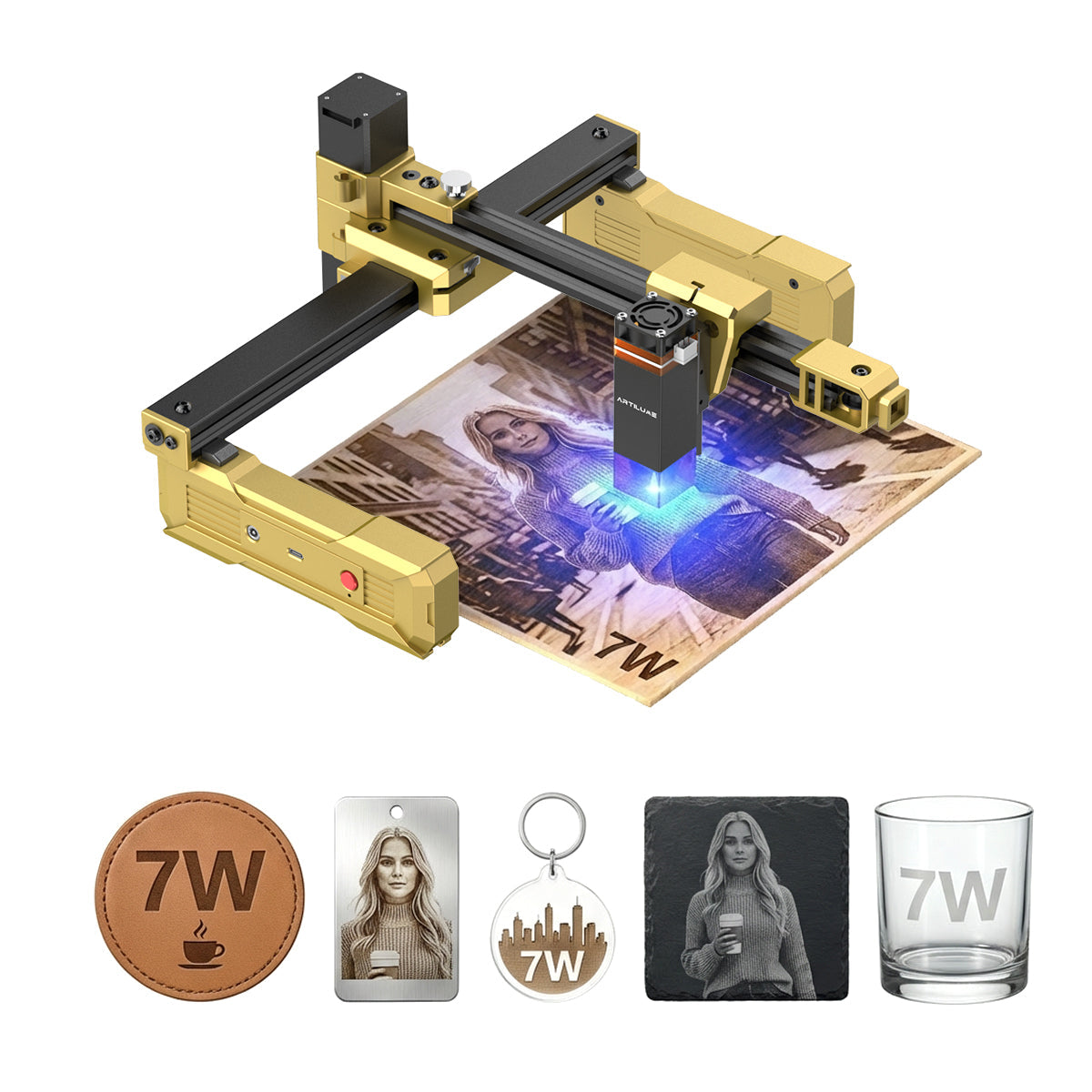

ARTILUME T1 Foldable Laser Engraver
$389.00
/
Product Features

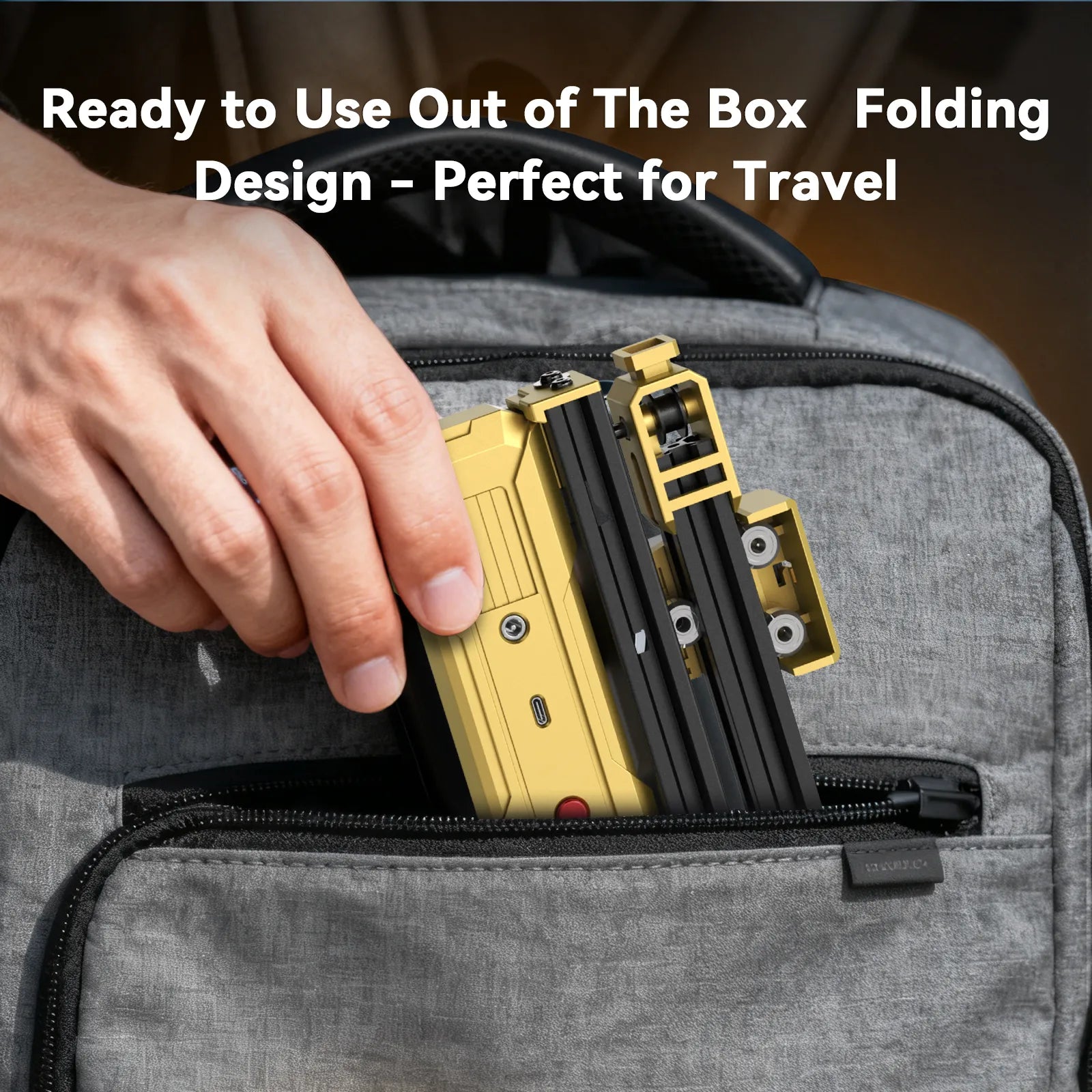

- Foldable & Portable, 1-Min Setup & Carve
- 0.01mm Precision, 100+ Materials Compatible
- Newbie-Friendly,30-Second Quick Start
- Safe & Durable,10,000-Hour Laser Life
- 360° Carving, Multi-Scene Mobile Creation
- Space-Saving,Easy to Use, Ultra-Flexible
- Perfect for DlY/Studio/Education, All-User
Specification
Whole structure

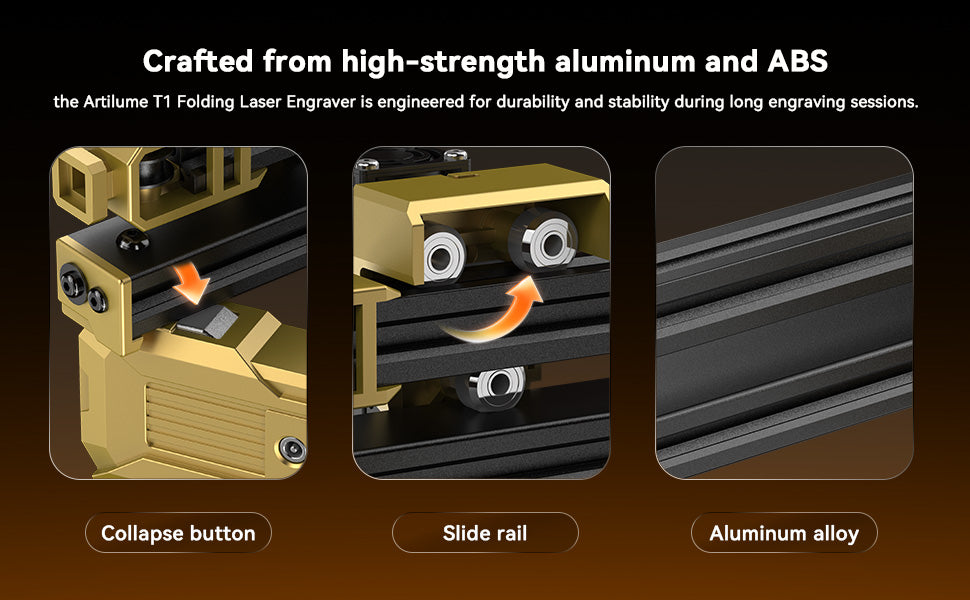

Body structure materialOxidized profile
Carving dimensions (mm)400*400mm
Overall machine power Electrical power<60W (laser tube 10W) <96W (laser tube 20V)

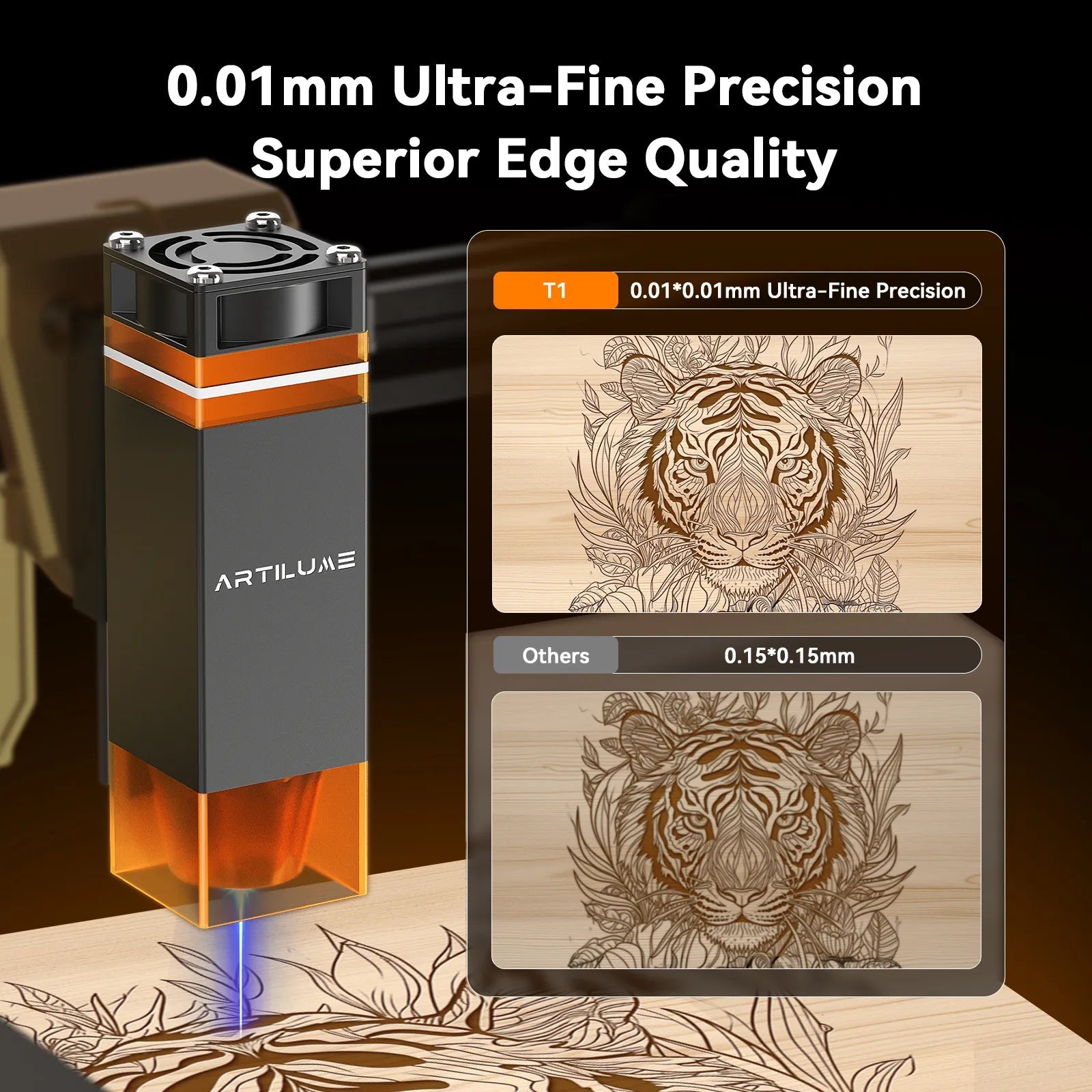

Carving accuracy0.01mm
Cooling methodAir-cooled
Height of carved objectLess than 70mm (10W) Less than 70mm (20W)
Laser device
Laser eye-protection designDeliver goggles and module with shading cover
Focusing methodSide-mounted knob type / fixed block

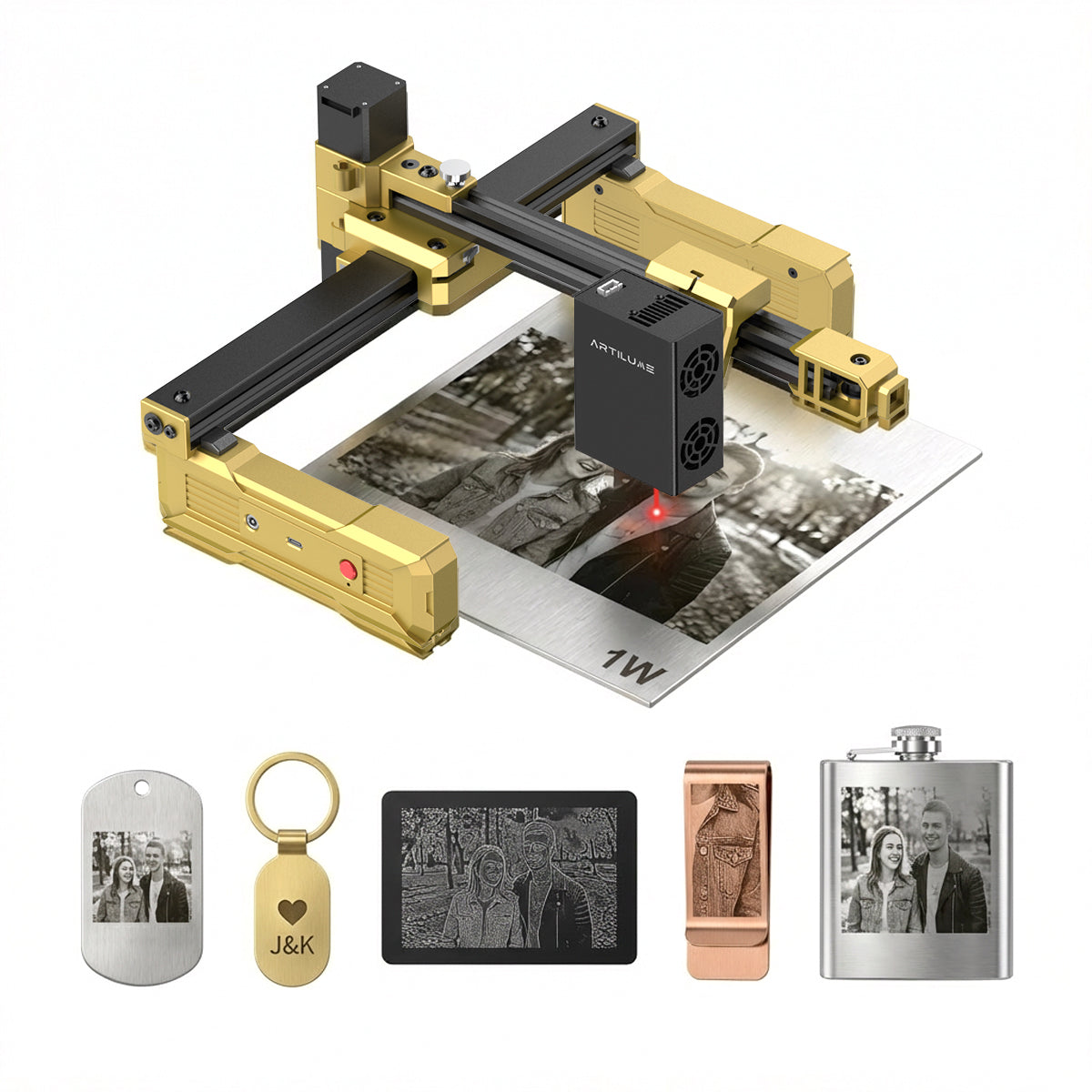

Laser light power3W 7W 1064-1W
Laser wavelength450±5nm 1064±1
Laser spot size0.12*0.08mm (2.5W, 3W) <0.12*0.15mm (6W, 7W) 0.05mm ±1
Laser module lifespanAt a temperature of 27°C, approximately 10,000 hours
Engraving speedSculpting speed: 10000mm/min
Laser stabilityThe design of the driver board, laser chip, heat dissipation,
etc. is reasonable, and the optical and electrical performance is stable.
etc. is reasonable, and the optical and electrical performance is stable.
Motherboard and engraving software
Motherboardesp32 high-speed double-sided glass fiber board
Data transmissionUSB to serial port wired transmission

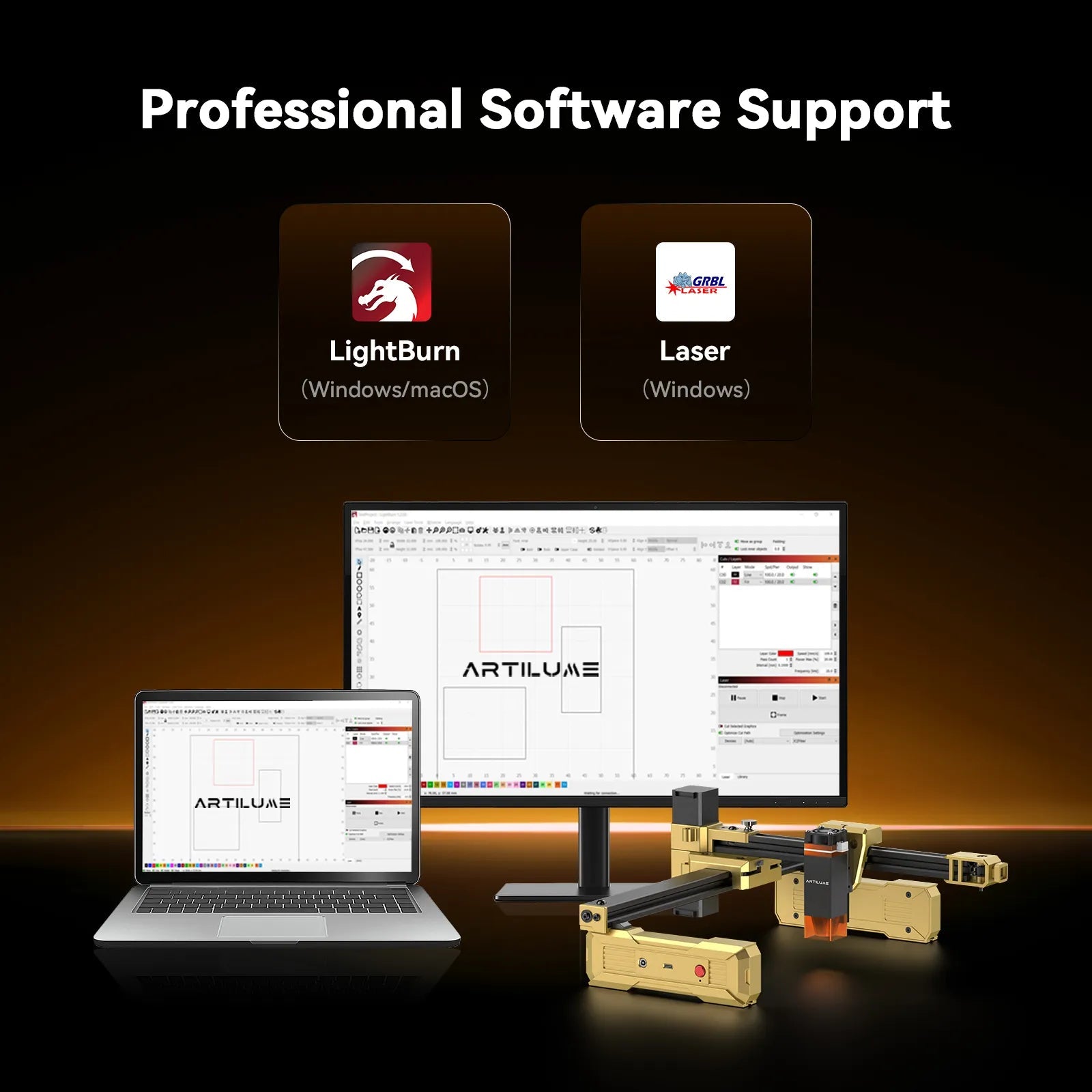

Operating softwareLightburn/GRBL software platform (computer application)
Supported formats
.JPEG/BMP/JPG/GIF/PLT/PNG/CUTLABX
.DXF/PLT/HPGL;
GRBL:
.JPG/BMP/PNG/GIF.NC etc.
.DXF/PLT/HPGL;
GRBL:
.JPG/BMP/PNG/GIF.NC etc.
Supported systemsLightburn (Windows, macOS), LaserGRBL (Windows)
Voltage
Applying voltage100 - 240V / 50 - 60HZ (Power Adapter)
Machine input voltageDC12V
Motors and processors
MotorStepper motor
Motor driveStepper motor driver chip
Processor32-bit high-speed MCU
Artilume Product line comparison
| Model |

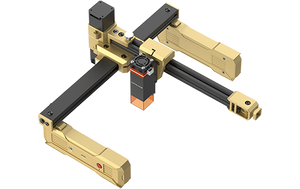

ARTILUME T1
Buy Now
|

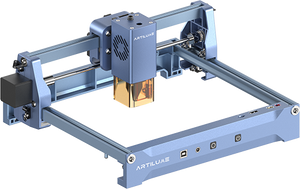

ARTILUME U1
Buy Now
|
|---|---|---|
| Laser module | 3W / 7W diode laser 1W infrared laser |
3W/7W / 12W diode laser 1W infrared laser |
| Laser Type | Semiconductor diode laser 1W infrared laser |
Semiconductor diode laser 1W infrared laser |
| Laser wavelength | Diode laser: 455nm 1W infrared laser: 1064nm |
Diode laser: 455nm 1W infrared laser: 1064nm |
| Laser spot size | 3W diode laser: 0.12*0.08mm 7W diode laser: 0.12*0.15mm 1Winfrared laser:0.05*0.05mm |
3.7.12W diode laser: 0.12*0.15mm 1W infrared laser: 0.05* 0.05mm |

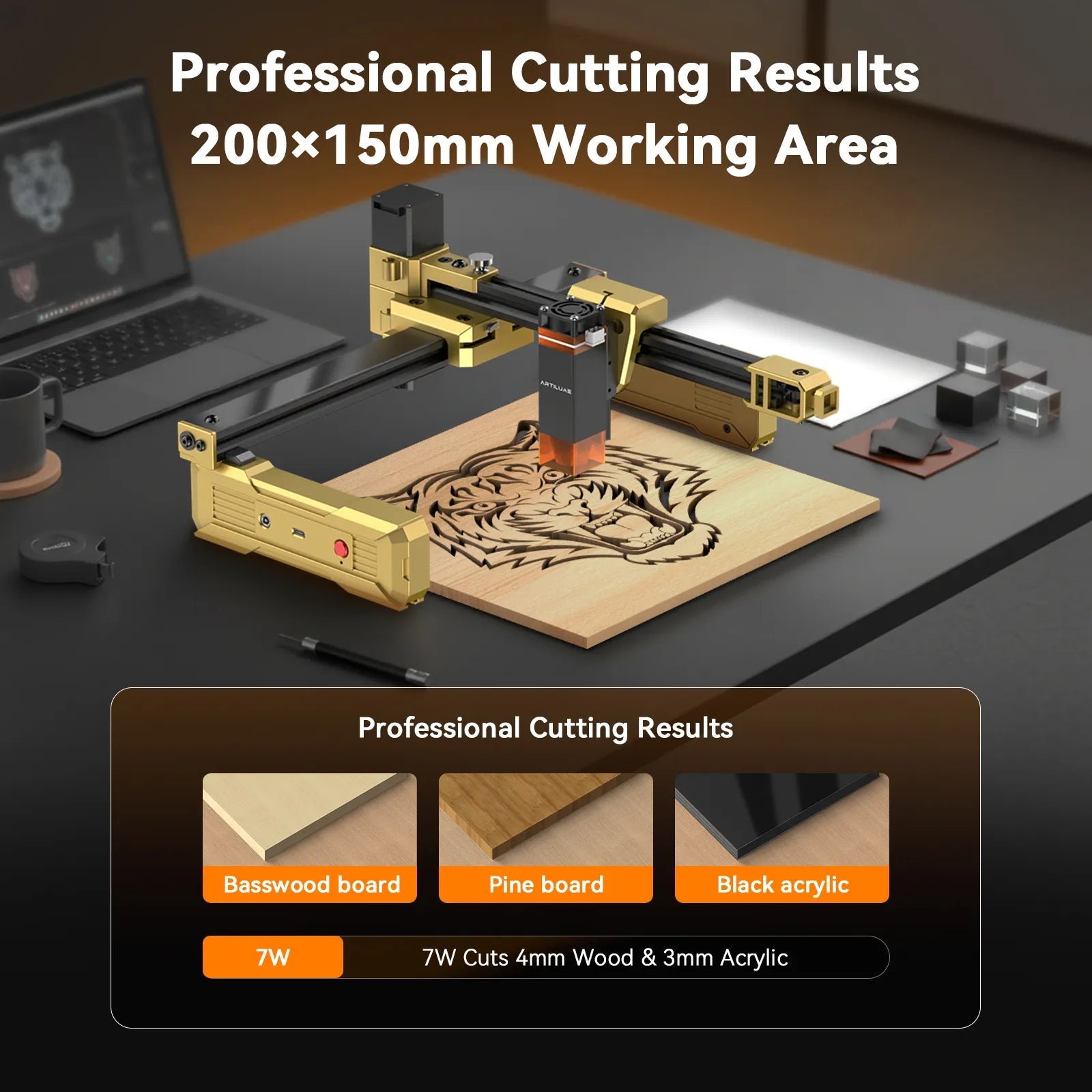

| Working area | 200*150mm | 200*150mm |
| Maximum working speed | 10000mm/min | 7000mm/min |
| Engraving accuracy | 0.01mm | 0.01mm |
| Laser head service life | At a temperature of 27°C for approximately 10,000 hours |
At a temperature of 27°C for approximately 10,000 hours |
| Machine size | 369*360*147mm | 340*290*148mm |
| Machine weight | 3W/7W: 1.36kg 1W: 1.48kg |
5W 1.27kg 12W 1.38kg |
| Software Support | LightBurn(Windows、 macOS) LaserGRBL (Windows) |
CutLabX (Windows、macOS、 Android、 lOS) LightBurn(Windows、macOS) LaserGRBL(Windows) |
| Connection Methods | USB | USB/Wi-Fi |
| Motion structure | Pulley | Pulley |
| Focus mode | Manual focusing | Manual focusing |
| Pre-assembly | Yes | Yes |
| Support format | Lightburn: Image format:JPEG/BMP/JPG/GIF/PLT/CUTLABX Vector format:DXF/PLT/HEGL GRBL software platform:JPG.BMP.PNG.GIF.NC.etc.fotmats |
CutLabX software platform lmage format: JPEG/BMP/JPG/PNG/CUTLABX Vector format: DXF GRBL software platform: NC/BMP/JPG/PNG/DXF, etc. formats |
| Support material | Diode laser:Paper, wood chips, plastic, leather, fabric,cardboard, leather, stone, ceramics, stainless steel, coated metal, certain dark packaging acrylic, etc. 1W infrared laser engraving for stainless steel, aluminum,brass, iron, gold, platinum, titanium, black acrylic, plastic& more. |
Diode laser:Paper, wood chips, plastic, leather, fabric,cardboard, leather, stone, ceramics, stainless steel,coatedmetal, certain dark packaging acrylic, etc. 1W infrared laser engraving for stainless steel,aluminum, brass, iron, gold, platinum, titanium, black acrylic, plastic & more. |
| Supported accessories | Air pump / Honeycomb panel Rotating gripper disc / Rotating shaft |
Air pump /Honeycomb panel / Heightening column Air pump / Honeycomb panelRotating gripper disc / Rotating shaft |

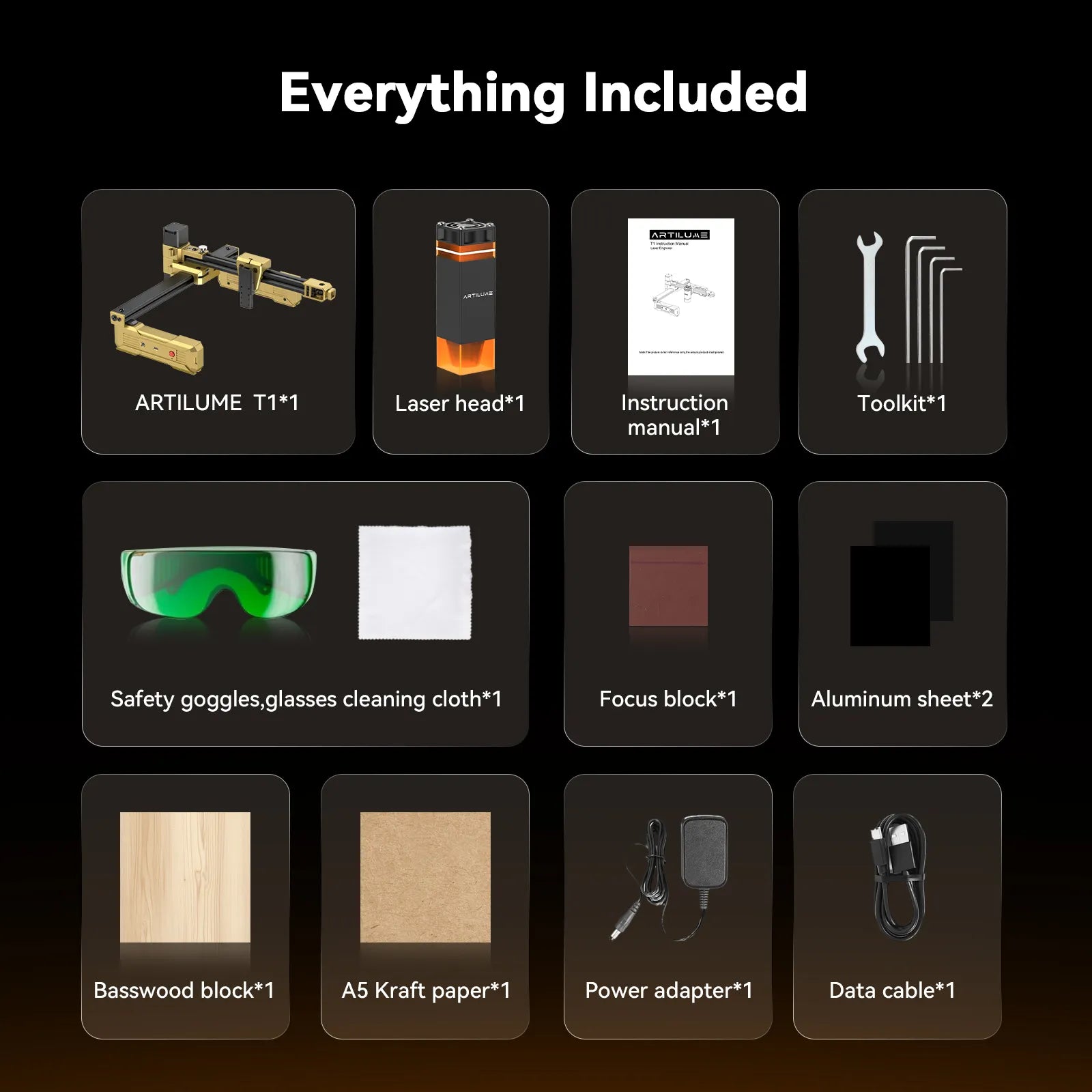

What's in the box
ARTILUME T1
Laser head
User Guide
Tool kit
Protective glasses
eyeglass cleaning cloth
Focus Button
Aluminum sheet
Wooden board
A5-sized cardboard paper
Network adapter *1
Data cable
